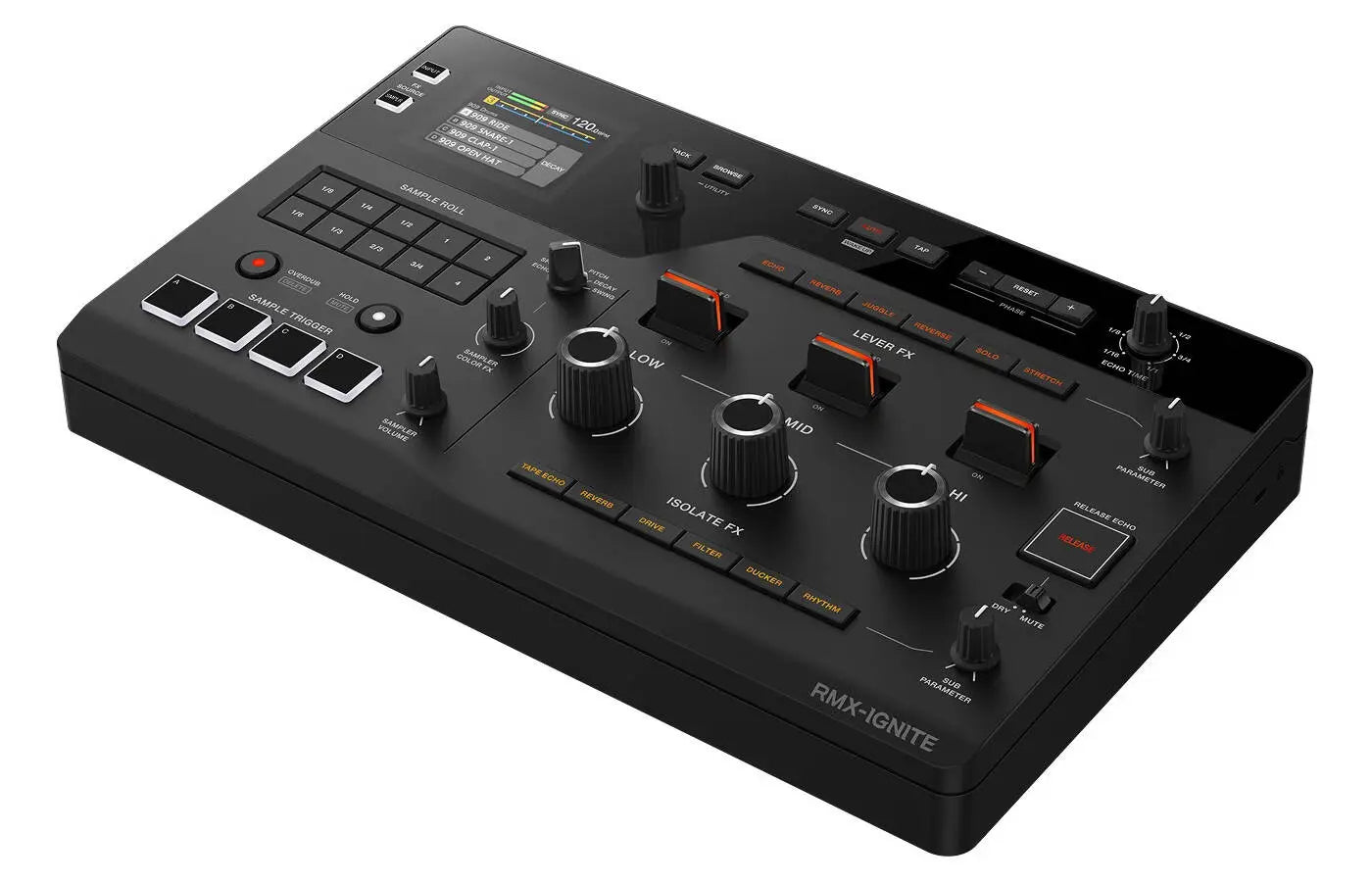

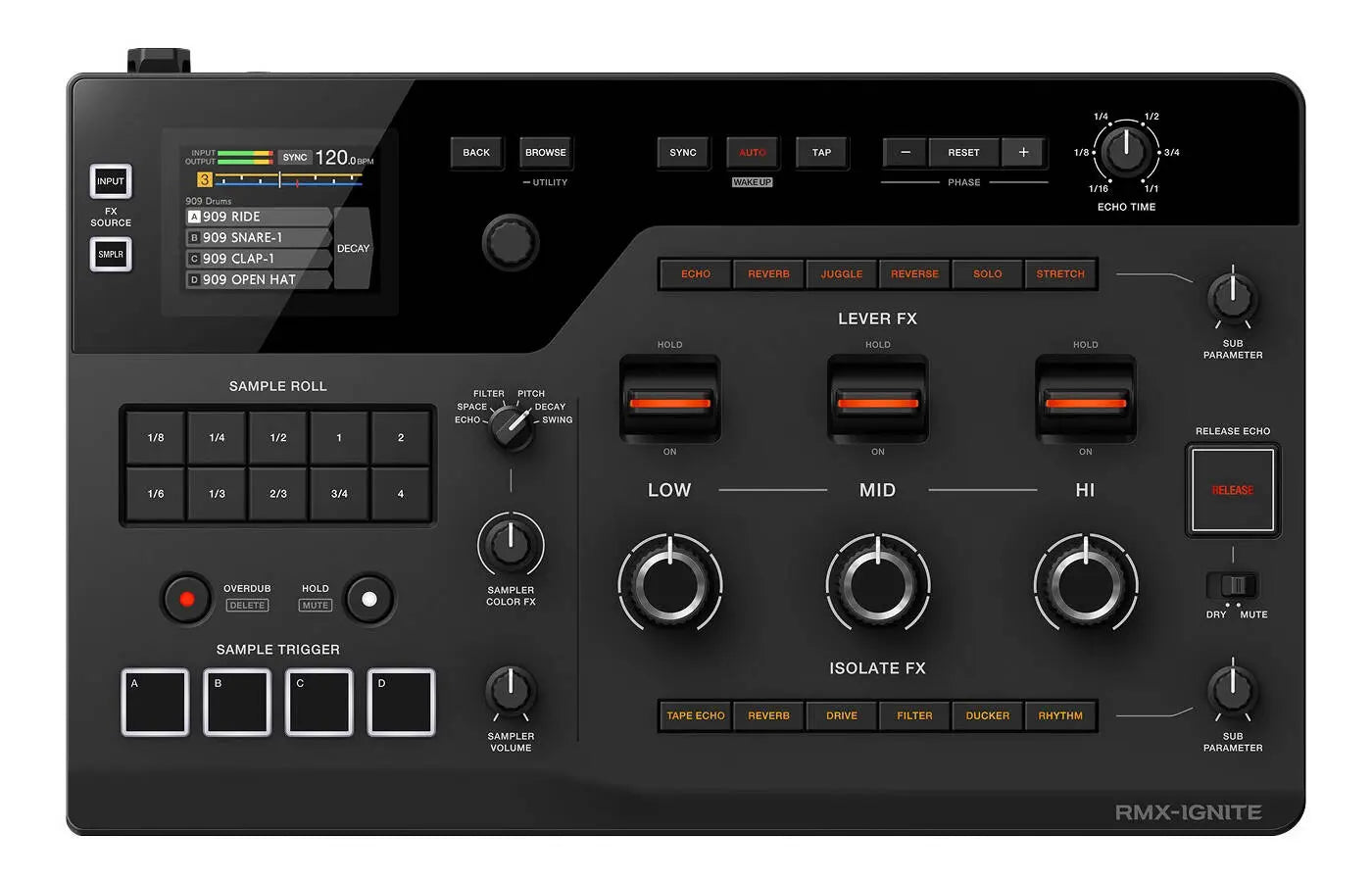

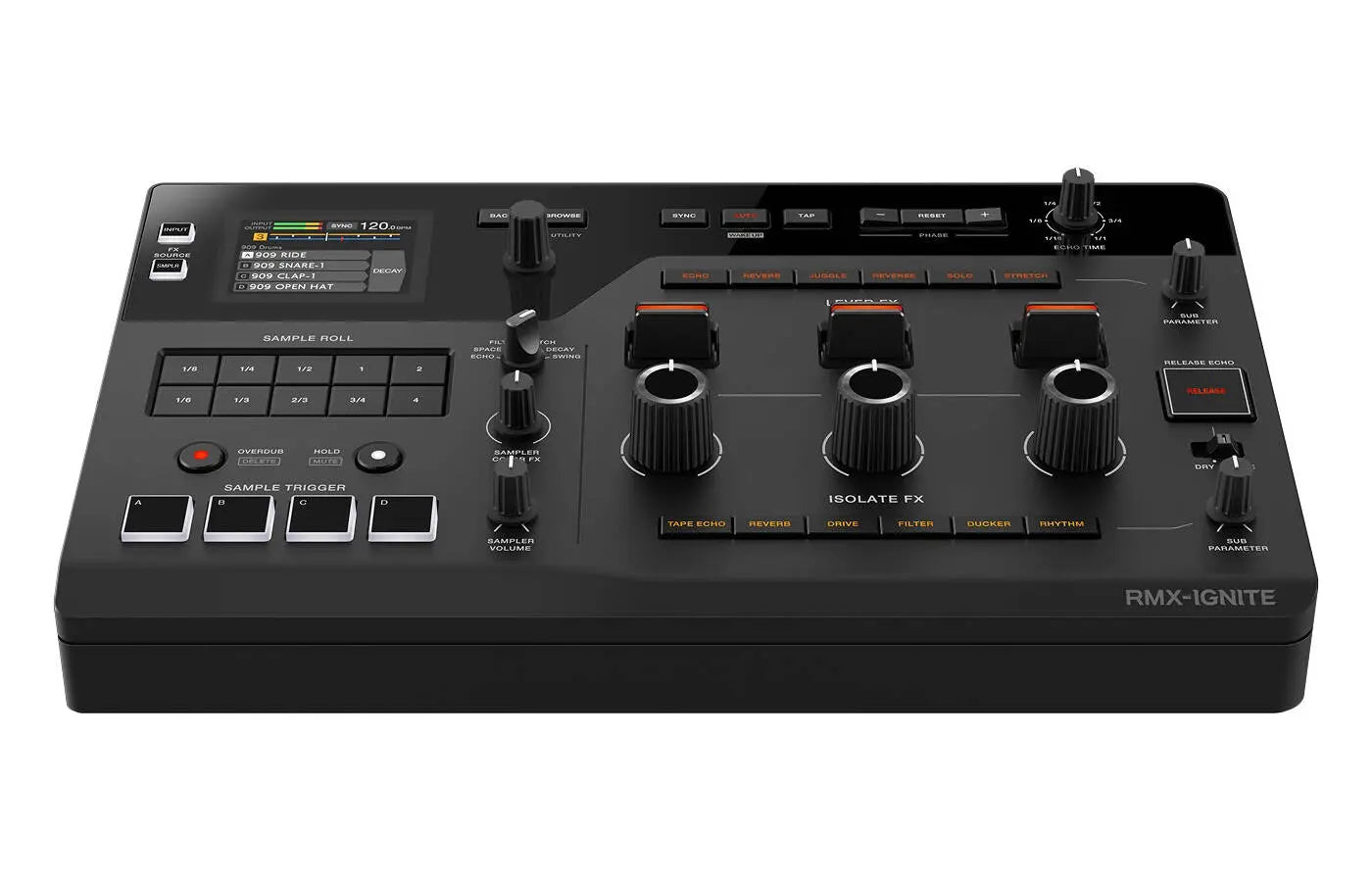

AlphaTheta RMX Ignite Professional DJ Effector with 4-pad Sampler
Description
Meet the next-gen RMX-IGNITE effector, made to help you show your individuality and spark creativity. The original RMX-1000 launched in 2012 and became respected by DJs worldwide for delivering reliable real-world performance and is still popular today. The RMX-IGNITE is a completely renewed effector that combines dynamic sound-shaping control with advanced effects and a sampler section that lets you remix tracks freely for a dynamic live performance.
3-Band FX
The 3-Band FX section includes Lever FX and Isolate FX, and you can apply each to the high, mid, or low frequency bands. Combining the 2 effect types opens diverse performance options and, with the sub-parameter knobs, you can refine the tone for richer, more expressive sounds.
Lever FX
Use the 3 large levers to apply instant, dramatic effects: Echo, Reverb, Juggle, Reverse, Solo, and Stretch.
Isolate FX
3 large knobs enable smooth and dynamic control of Tape Echo, Reverb, Drive, Filter, Ducker, and Rhythm.
Release Echo
With a single button, you can instantly clear effects and samples, returning smoothly to the original track with an echo tail.
Sample Trigger Pad
Use the 4 responsive pads to intuitively trigger 20 built-in samples from Loopmasters. In Overdub mode, you can loop 1-bar phrases and layer samples to build dynamic progressions.
Sample Roll
Samples triggered with the pads can be rolled in 10 patterns. With the new Groove Roll, you can press multiple buttons at once to create accented, flowing rolls that show your individuality and bring energy to your buildups.
Sampler Colour FX
Control 6 dedicated effects Echo, Space, Filter, Pitch, Decay, and Swing with 1 knob to instantly reshape samples with added depth or groove.
RMX-IGNITE Sample Manager
Play your own samples from a USB drive or any PRO DJ LINKconnected multi player.
Digital send/return
Quick setup means you can start playing right away. Simply connect a USB cable to your mixers MULTI I/O terminal. (DJM-A9 & DJM-V10 compatible)
PRO DJ LINK Sample playback
Load samples directly from PRO DJ LINKconnected players without dedicated sample storage. BPM and grid information are synced automatically.
High-fidelity design
Studio-quality 96 kHz / 64-bit DSP and ESS 32-bit AD/DA converters reproduce the music with striking clarity and depth. Every component is tuned to let the original sound breathe, capturing subtle details and expression. What you hear is true to the source, the moment, and your touch.
In the Box:
- DJ effector
- AC adaptor
- Power cord
Power requirements: AC 100 V - 240 V, 50 Hz / 60 Hz
Power consumption: DC 15 V, 3.0 A
Power consumption (OFF): 0.3 W
Max. external dimensions (W D H): 340.0 213.3 72.8 mm / 13.4" x 8.4" x 2.9"
Main unit weight: 2.3 kg / 5.1 lbs.
Operating temperature: +5 °C - +35 °C
Operating humidity: 5% - 85% (no condensation)
Audio
Sampling rate: 96 kHz
A/D, D/A converter: 32 bit
Frequency response: 20 Hz 40 kHz
S/N ratio (rated output, A-weighted)
- CONNECTION switch (MST): 115 dB
- CONNECTION switch (SEND/RETURN): 114 dB
- CONNECTION switch (CDJ): 108 dB
Total harmonic distortion (20 Hz 20 kHz BW): 0.0018 %
Standard input level / Standard output level
- CONNECTION switch (MST): +4 dBu / +4 dBu
- CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
- CONNECTION switch (CDJ): -6 dBu / -12 dBu
Input impedance: 47 kΩ
Output impedance: 680 Ω or less
Rated output level / Load impedance
- CONNECTION switch (MST): 21 dBu / 10 kΩ
- CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ
- CONNECTION switch (CDJ): 3 dBu / 10 kΩ

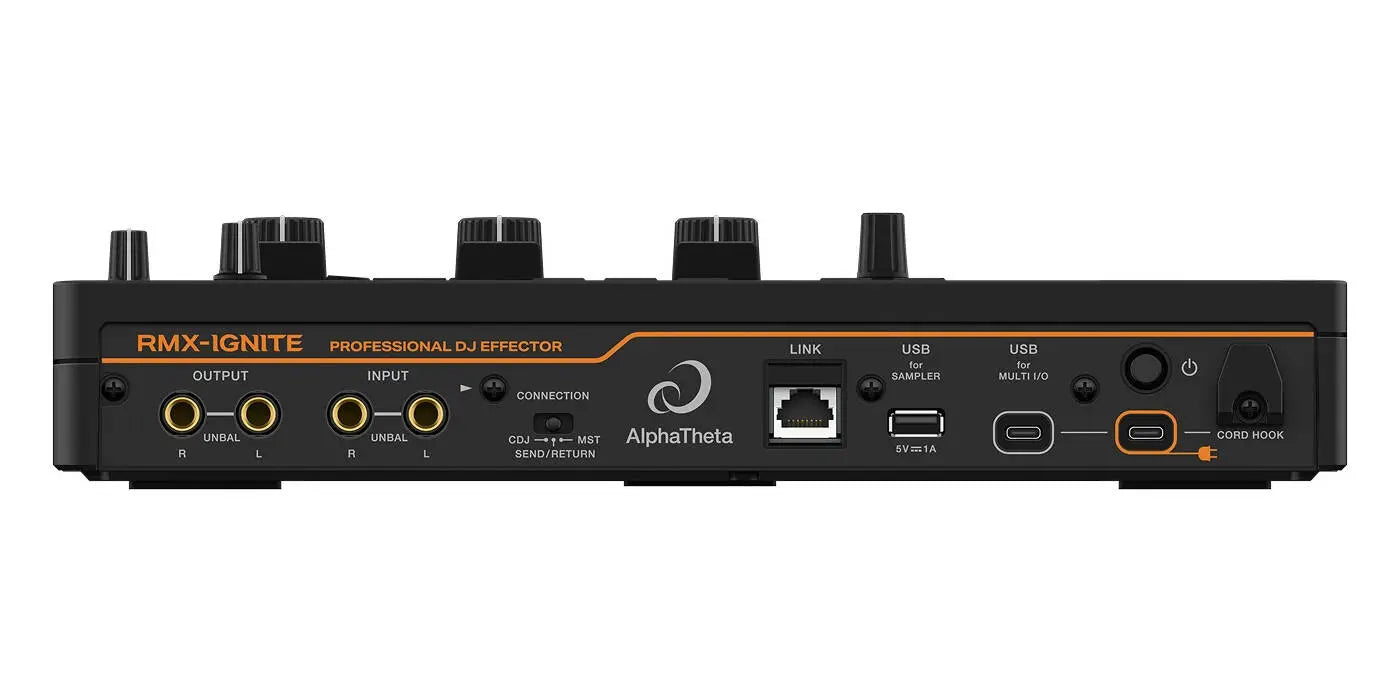

Input / Output Terminals
Input: 1/4" TS jack x 1
Output: 1/4" TS jack x 1
USB Type-A (for SAMPLER): 1 set (Power supply : 5 V/1 A or less)
USB Type-C (for MULTI I/O, AC adapter): 2 sets
LINK: LAN (100BASE-TX) 1
Supported file formats
WAV
- Bit depth: 16 bit / 24 bit
- Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
AIFF
- Bit depth: 16 bit / 24 bit
- Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
Physical
Maximum Dimensions (W-D-H): 340.0 x 213.3 x 72.8 mm (13.4" x 8.4" x 2.9")
Main Unit Weight: 2.3 kg / 5.1 lb
Features
3-Band FX
The 3-Band FX section includes Lever FX and Isolate FX, and you can apply each to the high, mid, or low frequency bands. Combining the 2 effect types opens diverse performance options and, with the sub-parameter knobs, you can refine the tone for richer, more expressive sounds.
Lever FX
Use the 3 large levers to apply instant, dramatic effects: Echo, Reverb, Juggle, Reverse, Solo, and Stretch.
Isolate FX
3 large knobs enable smooth and dynamic control of Tape Echo, Reverb, Drive, Filter, Ducker, and Rhythm.
Release Echo
With a single button, you can instantly clear effects and samples, returning smoothly to the original track with an echo tail.
Sample Trigger Pad
Use the 4 responsive pads to intuitively trigger 20 built-in samples from Loopmasters. In Overdub mode, you can loop 1-bar phrases and layer samples to build dynamic progressions.
Sample Roll
Samples triggered with the pads can be rolled in 10 patterns. With the new Groove Roll, you can press multiple buttons at once to create accented, flowing rolls that show your individuality and bring energy to your buildups.
Sampler Colour FX
Control 6 dedicated effects Echo, Space, Filter, Pitch, Decay, and Swing with 1 knob to instantly reshape samples with added depth or groove.
RMX-IGNITE Sample Manager
Play your own samples from a USB drive or any PRO DJ LINKconnected multi player.
Digital send/return
Quick setup means you can start playing right away. Simply connect a USB cable to your mixers MULTI I/O terminal. (DJM-A9 & DJM-V10 compatible)
PRO DJ LINK Sample playback
Load samples directly from PRO DJ LINKconnected players without dedicated sample storage. BPM and grid information are synced automatically.
High-fidelity design
Studio-quality 96 kHz / 64-bit DSP and ESS 32-bit AD/DA converters reproduce the music with striking clarity and depth. Every component is tuned to let the original sound breathe, capturing subtle details and expression. What you hear is true to the source, the moment, and your touch.
In the Box:
- DJ effector
- AC adaptor
- Power cord
Specifications
Power requirements: AC 100 V - 240 V, 50 Hz / 60 Hz
Power consumption: DC 15 V, 3.0 A
Power consumption (OFF): 0.3 W
Max. external dimensions (W D H): 340.0 213.3 72.8 mm / 13.4" x 8.4" x 2.9"
Main unit weight: 2.3 kg / 5.1 lbs.
Operating temperature: +5 °C - +35 °C
Operating humidity: 5% - 85% (no condensation)
Audio
Sampling rate: 96 kHz
A/D, D/A converter: 32 bit
Frequency response: 20 Hz 40 kHz
S/N ratio (rated output, A-weighted)
- CONNECTION switch (MST): 115 dB
- CONNECTION switch (SEND/RETURN): 114 dB
- CONNECTION switch (CDJ): 108 dB
Total harmonic distortion (20 Hz 20 kHz BW): 0.0018 %
Standard input level / Standard output level
- CONNECTION switch (MST): +4 dBu / +4 dBu
- CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
- CONNECTION switch (CDJ): -6 dBu / -12 dBu
Input impedance: 47 kΩ
Output impedance: 680 Ω or less
Rated output level / Load impedance
- CONNECTION switch (MST): 21 dBu / 10 kΩ
- CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ
- CONNECTION switch (CDJ): 3 dBu / 10 kΩ
Input / Output Terminals
Input: 1/4" TS jack x 1
Output: 1/4" TS jack x 1
USB Type-A (for SAMPLER): 1 set (Power supply : 5 V/1 A or less)
USB Type-C (for MULTI I/O, AC adapter): 2 sets
LINK: LAN (100BASE-TX) 1
Supported file formats
WAV
- Bit depth: 16 bit / 24 bit
- Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
AIFF
- Bit depth: 16 bit / 24 bit
- Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
Physical
Maximum Dimensions (W-D-H): 340.0 x 213.3 x 72.8 mm (13.4" x 8.4" x 2.9")
Main Unit Weight: 2.3 kg / 5.1 lb
