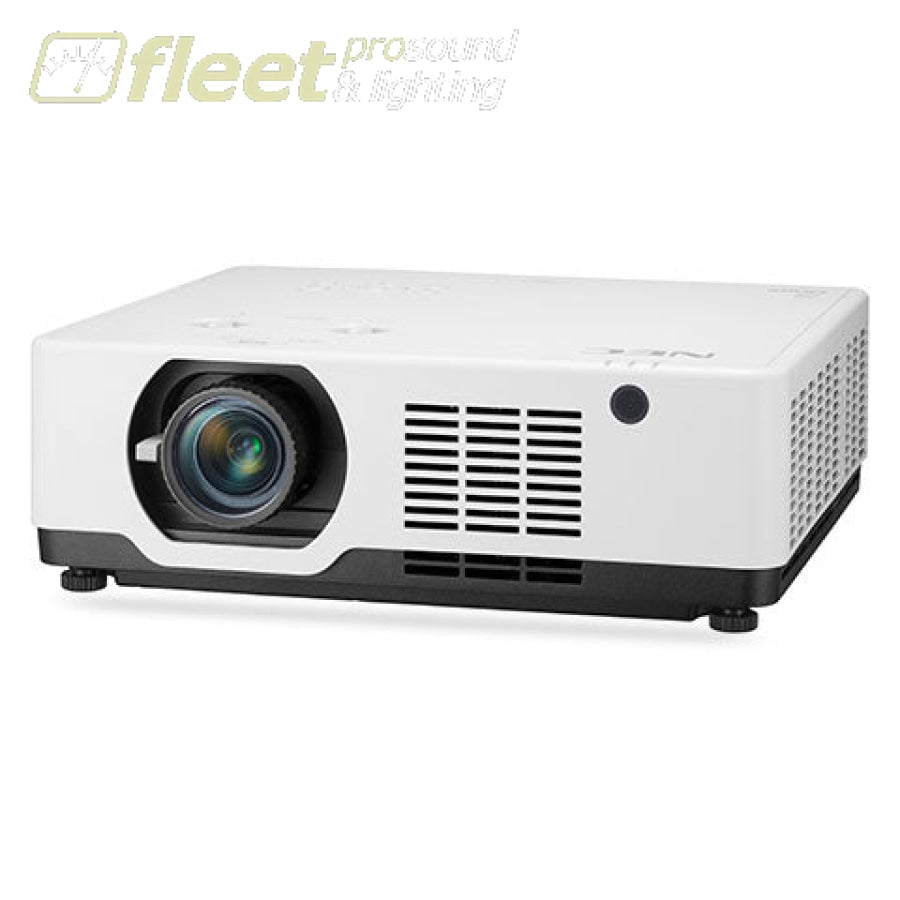

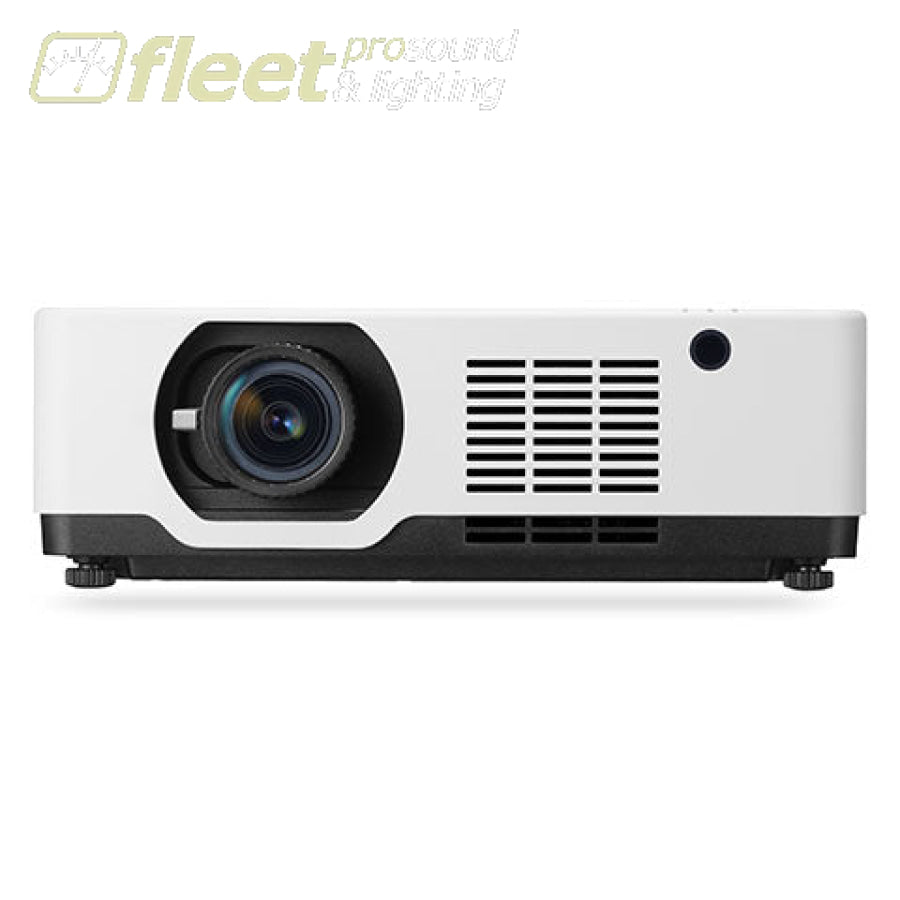

NEC 5200 Lumen WUXGA Laser Video Projector - NP-PE506UL

NEC

$3,399.95

The NEC PE506UL Entry Installation Series, LCD, laser projector combines a unique set of features at a budget conscious price making it ideal for K12 and higher education classrooms as well as corporate conference rooms for small to medium sized business. With 5200 lumens, WUXGA resolution and outstanding LCD color fidelity the PE Series delivers impressive images in demanding applications. Installation flexibility is achieved with a compact design and broad horizontal and vertical manual lens shift with a 1.6x zoom lens. The 20,000 hour laser life creates a low TCO projection solution.

LCD technology delivers an impressive and accurate image
Horizontal & Vertical lens shift enables flexible projector placement
Powerful 16W speakers provide volume needed for most large classrooms and conference rooms
4K Ready - Display stunning 4K 30Hz content using NEC’s proprietary high performance video processing/scaling chip
Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in K12, higher education and corporate

Product Specifications

Display

Aspect Ratio	16x10	Screen Resolution	WUXGA 1920x1200
Maximum Resolution	Up to 4K@30 (HDMI), WUXGA (1920x1200) Analog	Contrast Ratio (typical)	3,000,000:1 (with Dynamic Contrast)

Synchronization Range

Horizontal (Analog/Digital)	15-100kHz (RGB: 24kHz or over)	Vertical	24-85Hz

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD	PC Signal Compatibility	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Signal Compatibility	Yes	External Control	RS-232 (D-Sub 9pin), IR, LAN

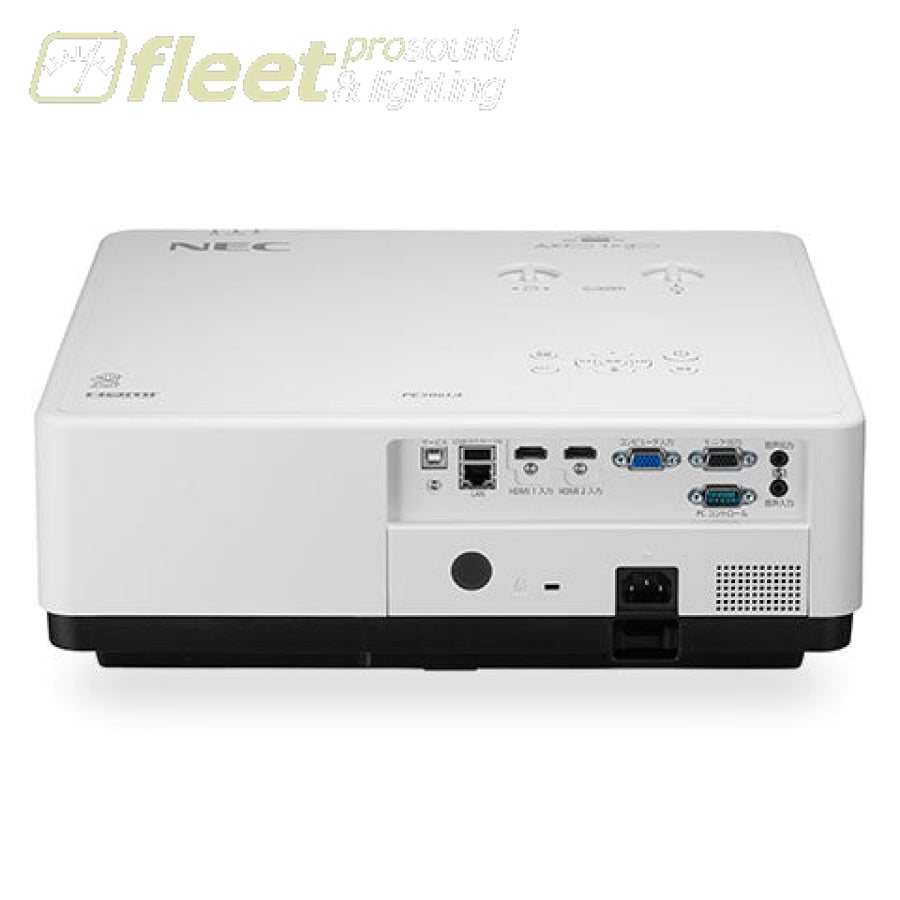

Input Terminals RGB1(analog): VGA 15-pin D-sub RGB1(digital): HDMI w/ HDCP (v1.4b) RGB2(digital): HDMI w/ HDCP (v1.4b) Audio 1: Stereo Mini Jack		Output Terminals Audio: Stero Mini Jack Audio Out: Stereo Mini Jack Monitor Out: VGA 15pin D-sub

Power Consumption (typical)

On	352W / 228W / 201W / 2W / 0.5W	Input Current	4.5-1.6A
Power Requirements	100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD) Product: 15.9 x 5.4 x 14.7 in. / 405 x 137 x 373 mm Shipping: 20.1 x 10.2 x 19.7 in. / 510 x 260 x 500 mm		Weight Net Weight: 17.5 lbs. (7.95 kg) Shipping: 21.9 lbs. (9.95 kg)

Environmental Conditions

Operating Temperature	32-104°F / 0-40°C	Operating Humidity	20 to 88% Humidity (Non-Condensing)
Storage Temperature	14-122°F / -10-50°C	Storage Humidity	20 to 80% Humidity (Non-Condensing)

Limited Warranty (parts & labor)

Registered owners receive a 5-year parts and labor warranty including InstaCare next business day exchange.

Additional Features

Direct power on Auto power off ECO Mode technology NaviSet Administrator2 compatible Crestron, AMX, PJLink support

Optical

Display Technology	0.64" LCD	Light Output(Lumens)	5,200 normal
Light Source Life	20,000 hours normal / 30,000 hours eco	Throw Ratio	1.22 - 1.98:1
Projection Distance	2.6 to 44.3 ft. / 0.8 to 13.5m	Projector Angle	0 - 10.8° tele / 0 - 17° wide (at 60")
Lens Zoom: 1.6x Focus: Manual F number, fnumber: F:1.5~2.08 /f=17.2~27.7mm		Keystone Correction	+/- 30° horizontal (manual), +/- 30° vertical (manual + auto)

Mechanical

Installation Orientation	Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear	Fan Noise	37dB (ECO mode Off), 27dB (ECO mode)
Regulations	USA: UL (UL60950-1/UL62368-1) FCC Part15 Class B, Canada: CAN/CSA (62368-1-14) ICES-003 Issue 7

Accessories

Included	Remote Control (2) AAA Batteries Power Cord RGB Signal Cable	Optional	Replacement Remote Control (RMT-PJ39) Custom Ceiling Mount (MP300CM)

Lens Adjustment Functions

Manual focus, zoom, shift

Supported Screen Size (maximum)

30 - 300 in. / 0.76 - 7.62m
