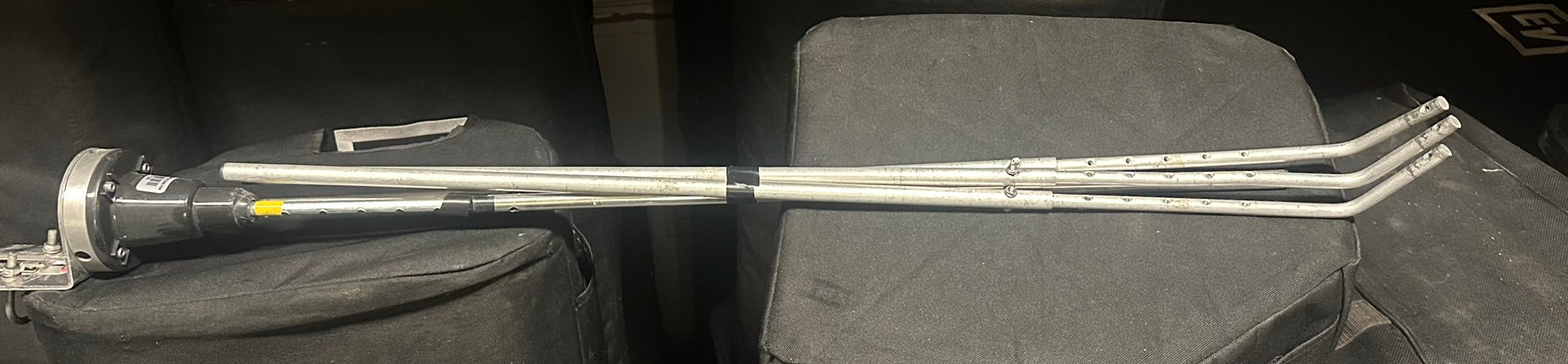

Decade LGP-FM Adjustable Omnidirectional FM Antenna, Used

The LGP-FM is an omni-directional ground plane antenna intended for outdoor broadcast applications. It is factory tuned to 97-102 MHz. The center element and ground radials can be extended (for lower frequencies) or retracted (for higher frequencies). The center element and the 3 ground elements must be the same length to ensure proper match.

Specifications:

• Polarization: vertical
• Radiation pattern: omni-directional
• Gain: 0 dB (unity gain)
• Frequency range: 87.9 – 107.9 MHz (adjustable)
• Impedance: 50 Ω
• Standing wave ratio: 1.5:1 max., 1.2:1 typ.
• Connector: SO-239 (UHF female)
• Power handling: 150 Watts maximum
• Wind factor handling: 80 mph (130 km/h) max.
• Dimensions: 68'' H (max) x 35'' W (max)
• Weight: 4 lb.
